heap_check.hpp File Reference

Memory leak detection helper. More...

#include <vector>

Include dependency graph for heap_check.hpp:

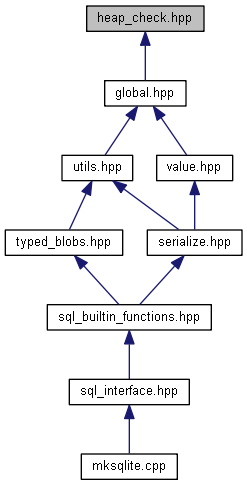

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	HeapCheck
	Helperclass for memory leak and access violation detection. More...
struct	HeapCheck::tagHeader
	Memory block header. More...
struct	HeapCheck::tagFooter
	Memory block footer (end marker) More...

Macros
#define	HC_ASSERT(exp)   if (!(exp)) {HC_ASSERT_ERROR;} else
#define	HC_NOTES(ptr, notes)   HeapCheck.UpdateNotes(ptr,notes)
#define	HC_COMP_ASSERT(exp)   extern char _HC_CompAssert[(exp)?1:-1]
	Verifies design-time assumptions (exp) at compile-time.
#define	HC_ABS(x)   (((x)>0)?(x):-(x))
	calculate absolute value
#define	HC_ISPOWER2(x)   (!((x)&((x)-1)))
	check if is a power of 2
#define	HC_ALIGNMENT   (sizeof(int))
	align to integer
#define	HC_DOALIGN(num)   (((num)+HC_ALIGNMENT-1)&~(HC_ALIGNMENT-1))
	memory alignment
#define	USE_HC_ASSERT
	Macro USE_HC_ASSERT must exist in every module which uses macro HC_ASSERT. More...

Functions
void	HC_ReportAssert (const char *file, const char *lpFunctionName, long line)
	Standard assert routine used by macro HC_ASSERT. More...

Variables
class HeapCheck	HeapCheck
	Instantiate HeapCheck object in main module.

Detailed Description

Memory leak detection helper.

Inspired by "Writing Bug-Free C Code" by Jerry Jongerius

See also

http://www.duckware.com/index.html

Author

Andreas Martin andim.nosp@m.arti.nosp@m.n@use.nosp@m.rs.s.nosp@m.ource.nosp@m.forg.nosp@m.e.net

Version

2.5

Date

2008-2017

Copyright

Distributed under LGPL

Precondition

Warning

Bug:

Definition in file heap_check.hpp.

---

Class Documentation

HeapCheck::tagHeader

struct HeapCheck::tagHeader

Memory block header.

Each memory block is surrounded by additional information: A preceding header stores who is responsible to this memory, some additional notes (comments) an a pointer to the end of the memory block (footer). By checking consitency of header and footer, one can test, if any close memory (write) accesses violation occures.

Definition at line 66 of file heap_check.hpp.

Collaboration diagram for HeapCheck::tagHeader:

Class Members
long	lLineNumber	line number or 0
const char *	lpFilename	filename or NULL
tagFooter *	lpFooter	pointer to footer, contiguous to memory block
const char *	lpFunctionName	function name
void *	lpMem	pointer to memory block (contiguous to this header space)
const char *	lpNotes	pointer to further notes or NULL

HeapCheck::tagFooter

struct HeapCheck::tagFooter

Memory block footer (end marker)

The footer only holds a pointer to the memory block header and is used for consistence check only.

Definition at line 82 of file heap_check.hpp.

Collaboration diagram for HeapCheck::tagFooter:

Class Members
tagHeader *	lpHeader	pointer to header of this memory block

Macro Definition Documentation

HC_ASSERT

#define HC_ASSERT

(

exp

)

if (!(exp)) {HC_ASSERT_ERROR;} else

Assert condition exp with reporting

Definition at line 24 of file heap_check.hpp.

Referenced by HeapCheck::VerifyPtr().

HC_NOTES

#define HC_NOTES	(		ptr,
			notes
	)		HeapCheck.UpdateNotes(ptr,notes)

Update field "notes" in memory block header

Definition at line 25 of file heap_check.hpp.

Referenced by MD5_func(), and regex_func().

USE_HC_ASSERT

#define USE_HC_ASSERT

Value:

extern "C"  void  HC_ReportAssert ( const char*, const char*, long );               \
static      int   _HC_DoAssert    ( const char* file, const char* func, int nLine ) \
{                                                                                   \
    HC_ReportAssert(file, func, nLine);                                             \
    HC_ASSERT(nLine);  /* inhibit removal of unreferenced function */               \
    return(0);                                                                      \
}

Macro USE_HC_ASSERT must exist in every module which uses macro HC_ASSERT.

Definition at line 37 of file heap_check.hpp.

Function Documentation

HC_ReportAssert()

void HC_ReportAssert	(	const char *	file,
		const char *	lpFunctionName,
		long	line
	)

Standard assert routine used by macro HC_ASSERT.

Parameters

[in]	file	Callers filename
[in]	lpFunctionName	Callers function name
[in]	line	Callers line numer

Definition at line 441 of file heap_check.hpp.
